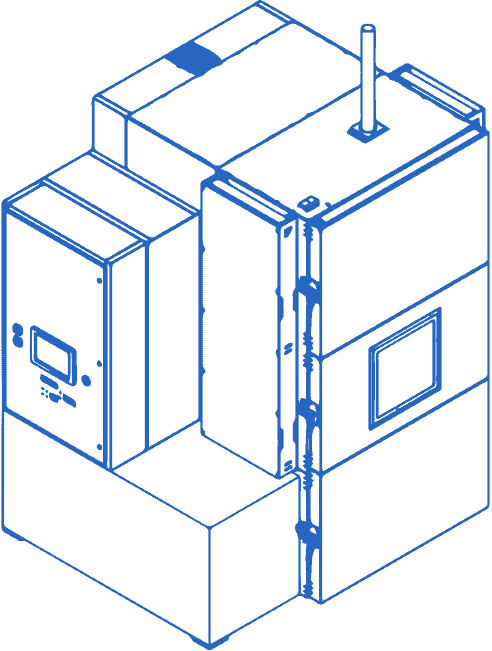

ESS Thermal Shock Chambers (TSV, TSH, TSD Series)

Russells’ air-to-air thermal shock chambers meet the demands of today’s environmental stress screening with proven performance in installations around the world. Our direct transfer method between hot and cold is an economical way to achieve rapid part temperature change for ESS or thermal shock. A Russells application engineer can assist you in selecting the configuration, size, and options that best suit your needs.

About ESS Thermal Shock Chambers

ESS is a means of screening products to expose defective parts or process problems that can’t be detected upon visual inspection or electrical testing. Developed to detect product defects and production flaws in electronics manufacturing, ESS uses thermal cycling or vibration to expose failures. Environmental stress screening chambers can be used as part of the manufacturing process, or they can be used in new product qualification testing.



View ESS Thermal Shock Spec Sheet

  • Thermal shock chambers
  • Chamber liners heliarc welded and dye checked brushed 300 stainless steel.
  • Fiberglass insulation, urethane foam insulation
  • Welded structural steel frame
  • Service panels removable with 1/4 turn fasteners
  • Chamber fan motors externally located
  • Dual silicone door gaskets
  • Cold chamber drain
  • Microprocessor temperature programmer controller
  • TSV Series Two Zone (hot/cold) Vertical – direct hot/cold transfer
  • TSH Series Three Zone (hot/ambient/cold) Horizontal – direct hot/cold transfer with selectable ambient temperature dwell required for some MIL-STD’s
  • TSD Series Double Duty (hot/cold/hot) – direct hot/cold transfer with additional hot zone and second transfer carriage effectively doubles throughput capacity for high volume production
  • Sizes from 30 l (1 cu ft) to 450 l (16 cu ft) capacity
  • Cold zone temperatures to -100°F/-73°C
  • Hot zone to 392°F/200°C
  • Automatic transfer of test specimens between zones
  • Temperature range for mechanical refrigeration:
    • -100°F/-73°C to 392°F/200°C
  • Temperature range for liquid nitrogen refrigeration:
    • -301°F/-185°C to 392°F/200°C
  • ESS Chambers
  • Cascade low temperature to -100°F/-73°C
  • Single stage to -4°F/-20°C
  • High temperature to 350°F/177°C
  • Transition rates to 54°F min./30°C min.
  • Humidity from 20% to 95% RH
  • Available with passive or power product fixturing
  • Cart based or backplane style
  • Traveling access port to transfer basket
  • Transfer basket shelves or fixtures
  • Viewing windows
  • Refrigeration gauges
  • Refrigeration sound deadening package
  • Remote refrigeration systems
  • LN2/CO2 boost cooling
  • Air cooled condenser
  • Dry air purge system
  • Running time meter
  • Electrical disconnect switch
  • RussellsOne controller
  • Product safeguard redundant over/under temperature limit
  • Circular or electronic chart recorders
  • Computer communications, networking, data‐logging software
  • Free standing remote instrument console
  • Low or zero ozone depletion refrigerants
  • Cascade or liquid nitrogen cooling
  • Energy saving refrigeration bypass capacity control
  • Low stage desuperheater
  • Oil pressure switches
  • Compressor suction and discharge pressure switches
  • Water cooled condenser on mechanical refrigeration models
  • Vapor tank and condenser ASME certified
  • Compressor overload protection
  • High-stage compressor crankcase heater
  • Compressor head fans
  • Low-stage oil separator
  • All piping joints silfos or silver soldered
  • Stainless steel compressor condensate parts
  • All wiring meets NEC standards
  • 120v control circuit transformer
  • Fully enclosed electrical panel
  • All circuits fuse of the circuit breaker protected
  • Full system function switches with system status pilot lights
  • Incandescent interior lighting
  • All wiring numbered or color coded
  • High temperature limit safety
  • Master heating circuit contactor
  • Air circulator/heater interlock
  • Balanced load on three phase power
  • Chamber door interlocks

Any of our chambers can be made explosion proof (EP).
