Portable Conditioning Units (Remote Conditioners)
Russells Technical Products portable conditioning units provide innovative, practical solutions for customers across a variety of applications. Offering a robust range of temperature and/or humidity capabilities, these units will condition existing environmental test chambers, temporary test spaces, and custom remote enclosures.
With options for single-stage or cascade refrigeration, or LN2 cooling, virtually every environment is attainable with our portable conditioning units. A Russells mechanically cooled PCU offers robust environmental testing flexibility, while LN2 cooling provides a wider cooling range and expedites temperature pull downs for your more extreme testing needs.
- Overview
- Features
- Optional Add-Ons
- Refrigeration
- Humidity
- Electrical Get Quote

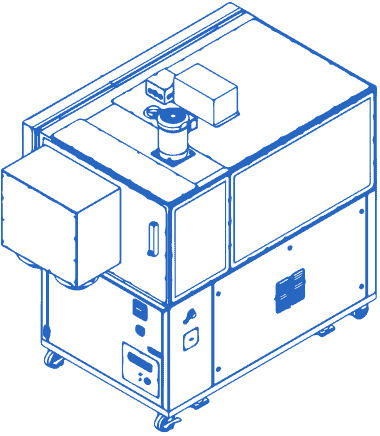

Portable Conditioning Unit – 810 – Mechanically Cooled
 |
 |
 |
Russells PCU-810 Mechanically Cooled Temperature or Temperature/Humidity Portable Conditioning Units give you robust environmental testing flexibility for your remote testing needs.
- Temperature Range:
- -65˚C to +165˚C (-85˚F to +329˚F) in cascade configurations
- -25˚C to +165˚C (-13˚F to +329˚F) in single-stage configuration
- -85˚C to +165˚C (-120˚F to +329˚F) with LN2 cooling
- Humidity Range:
- 10% to 95% RH within the bounds of a +85˚C (+185˚F) max dry bulb and a +4˚C (+40˚F) min dewpoint
- Air Delivery Range:
- 686 CFM to 372 CFM
- Three-sided access to base mounted system components
- Continuous TIG welded 304 stainless interior liner
- Non-settling oven grade fiberglass insulation
- Dual silicone one-piece door gaskets with mitered and vulcanized corners
- Durable, maintenance free powder coat finish (custom colors available)
- 6” duct ports on left-hand side wall
- Heavy duty swivel casters with incorporated leveling pads
- Refrigeration service manifolds with gauges
- Quick response vapor generator with replaceable Inconel immersion heaters (humidity models only)
- Vapor generator failsafe overtemp protection (humidity models only)
- Humidity water demineralizer with one cartridge (humidity models only)
- RussellsOne touchscreen controller temperature and humidity programmer/controller
- Insulated flexible air ducts
- LN2 or CO2 boost cooling
- Humidity water demineralizer
- Circular or electronic chart recorders
- GN2 purge system to minimize migrating moisture and condensation to control humidity
- VFD fan control
- Boost heating system
- Dry air purge to minimize migrating moisture and condensation to control humidity
- Air-cooled or water-cooled refrigeration condensor
- Main power disconnect switch
- Running time meter
- Minimal spark options for battery testing and potentially hazardous test articles
- High heat options (temperature only models)
- Multiple voltage options
- NRTL/eSAFE inspection
- Single stage or cascade refrigeration
- Zero ozone depletion refrigerants
- Energy saving refrigeration bypass capacity control
- Low stage desuperheater
- Oil pressure switches
- Compressor suction and discharge pressure switches
- ASME certified vapor tank and condensor
- Inherent compressor overload protection
- High stage compressor crankcase heater
- Compressor head fans
- Low stage oil separator
- All piping joints silfos or silver soldered
- Stainless steel compressor condensate pans
- Quick response vapor generator with replaceable Inconel® sheath immersion heater
- Vapor generator failsafe overtemp protection
- Humidity water demineralizer
- Humidity range: 10% RH to 95% RH
- UL 508A compliant control panel
- All wiring meets National Electric Code (NEC) standards
- 120v control circuit transformer
- Fully enclosed electrical panel
- All circuits fused or circuit breaker protected
- Full system function switches and indicator lights
- All wiring color coded and labeled
- High temperature failsafe limit
- Master heating circuit contactor
- Air circulator/heater interlock
- Balanced load on 3 phase power
- Overview
- Features
- Optional Add-Ons
- Refrigeration
- Humidity
- Electrical Get Quote
Portable Conditioning Unit – 810 – LN2
 |
 |
 |
Russells PCU-810-LN2 Temperature or Temperature/Humidity Portable Conditioning Units offers users a wider cooling range with dramatically decreased temperature pull down times.
- Temperature Range:
- -85˚C to +165˚C (-120˚F to +329˚F) with LN2 cooling
- Air Delivery Range:
- 686 CFM to 372 CFM
- Three-sided access to base mounted system components
- Continuous TIG welded 304 stainless interior liner
- Non-settling oven grade fiberglass insulation
- Dual silicone one-piece door gaskets with mitered and vulcanized corners
- Durable, maintenance free powder coat finish (custom colors available)
- 6” duct ports on left-hand side wall
- Heavy duty swivel casters with incorporated leveling pads
- Refrigeration service manifolds with gauges
- RussellsOne touchscreen controller temperature and humidity programmer/controller
- Insulated flexible air ducts
- Circular or electronic chart recorders
- GN2 purge system to minimize migrating moisture and condensation to control humidity
- VFD fan control
- Boost heating system
- Dry air purge to minimize migrating moisture and condensation to control humidity
- Additional LN2 nozzles for variable flow rate
- Main power disconnect switch
- Running time meter
- Minimal spark options for battery testing and potentially hazardous test articles
- High heat options (temperature only models)
- Multiple voltage options
- NRTL/eSAFE inspection
- Direct or indirect LN2 cooling
- All piping joints silfos or silver soldered
- Cryogenic service control solenoid valve
- Humidity capability NOT available on LN2 only models
- UL 508A compliant control panel
- All wiring meets National Electric Code (NEC) standards
- 120v control circuit transformer
- Fully enclosed electrical panel
- All circuits fused or circuit breaker protected
- Full system function switches and indicator lights
- All wiring color coded and labeled
- High temperature failsafe limit
- Master heating circuit contactor
- Air circulator/heater interlock
- Balanced load on 3 phase power
