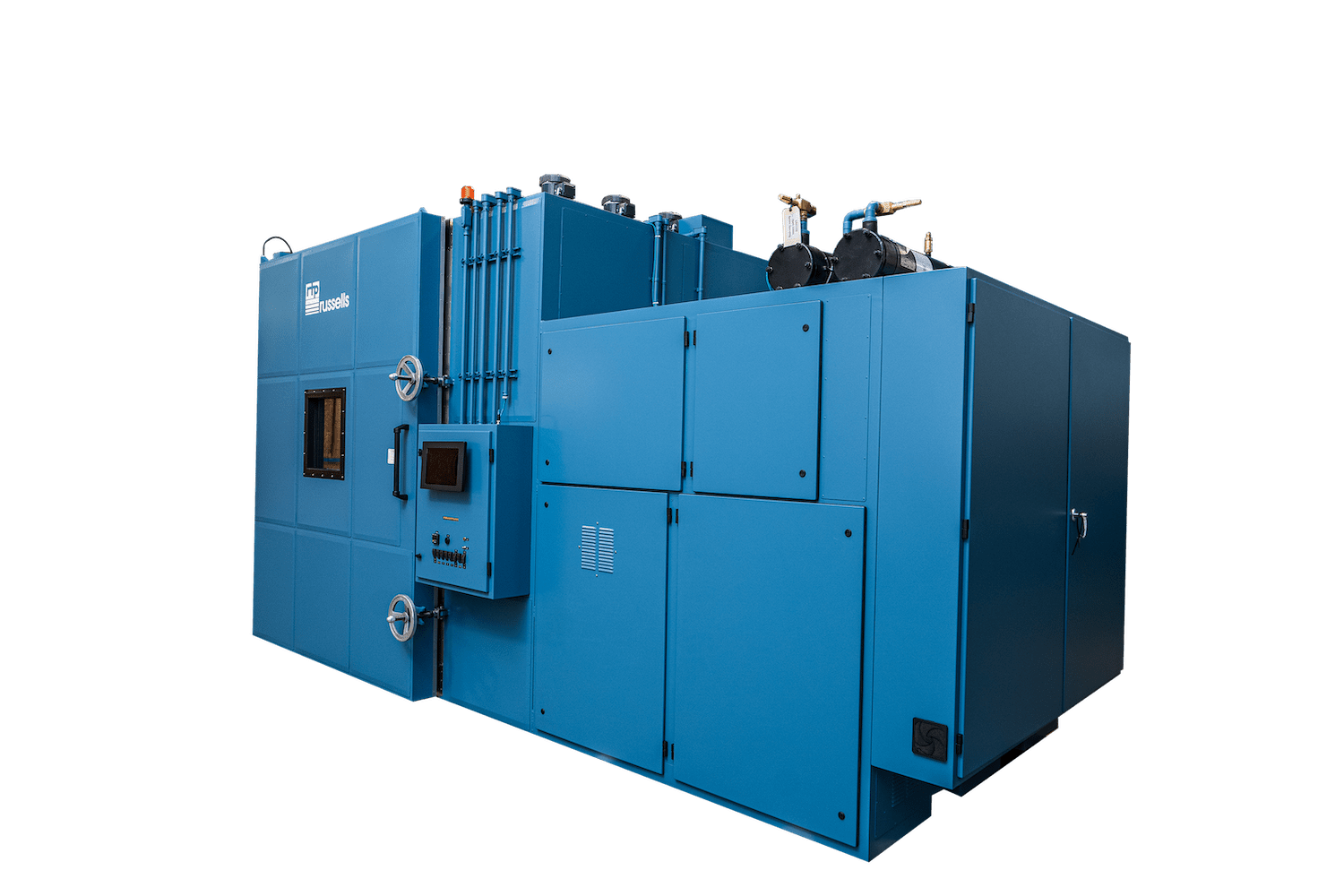

Walk-in environmental chamber

The Russells Technical Products W-Series is your solution for your most demanding temperature, humidity, and/or altitude testing requirements. Available in small walk-in or drive-in designs, the W-Series offers maximum flexibility in both chamber size and performance.

Moisture buildup can be destructive to products, especially electronics, causing corrosion and oxidation. The welded and dye-checked one-piece construction of the W-Series chambers allows for rapid thermal change rates, ultra-low temperature cooling, high humidity levels, and prolonged soaks at extreme temperatures and humidity.

Russells’ welded construction W-Series temperature and humidity test chambers afford maximum durability and performance for your most demanding simulation test requirements.

WalkinChamber

What Are Walk-In Environmental Chambers?

Moisture buildup can be destructive to products, especially electronics, causing corrosion and oxidation. Russells’ solid construction W-Series temperature and humidity test chambers afford maximum durability and performance for your most demanding simulation test requirements.

Controlled Testing Environment Capabilities

  • Steady-state or cyclical temperature and temperature/humidity tests
  • Rapid-rate temperature/humidity cycling tests (>9°F/5°C/min.)
  • Elevated temperature heat aging (>356°F/180°C)
  • Ultra low temperature cryogenic tests to -180°C/-292°F
  • Temperature range for single stage refrigeration:
    • -32°C/-25°F to 180°C/356°F
  • Temperature range for cascade refrigeration:
    • -73°C/-100°F to 180°C/356°F
  • Humidity Range:
    • 10% to 95% RH within the bounds of a 185°F/85°C max. dry bulb and a 40°F/4°C min. dewpoint
  • Removable access panels to serviceable components
  • Continuous TIG welded 304 stainless interior liner
  • Heavy duty welded steel frame
  • Non-settling oven grade fiberglass insulation
  • Heavy duty reinforced floor construction
  • Chamber floor drain(s), spill containment
  • Multiple door configurations and sizes
  • Dual silicone door gaskets with mitered and vulcanized corners
  • Multi-pane tempered heated viewing window minimizes condensation
  • Durable textured enamel painted finish *custom colors available
  • Quick response vapor generator with replaceable Inconel immersion heaters
  • Vapor generator low water safety protection
  • Humidity water demineralizer with one cartridge
  • Interior lighting with external switch
  • Can be equipped with battery testing safety features according to EUCAR hazard safety level
  • RussellsOne touchscreen controller temperature and humidity programmer/controller
  • Additonal data logging sensors/inputs
  • Auto restart timer to automatically restart chamber after power outage
  • Remote control panel for unique configuration requirements
  • Product Temperature (Cascade) Control
  • Additional access ports
  • Padlock hasp (lockable open/closed position)
  • LN2 or CO2 boost cooling
  • Dry air purge to minimize migrating moisture and condensation to control humidity
  • GN2 purge system to mitigate condensation and control humidity
  • Industrial dehumidification systems
  • Combustion/continuous make-up air systems
  • Remote (outdoor) refrigeration systems and/or condensors
  • Air-cooled or water-cooled refrigeration condenser
  • Refrigeration sound-deadening package
  • Boost heating
  • Main power disconnect switch
  • Control panel mounted E-Stop
  • Running time meter
  • Minimal spark options for battery testing and potentially hazardous test articles
  • Ultra-low temperature (cryo) options
  • High heat options (temperature only models)
  • Multiple voltage options
  • NRTL/eSAFE inspection
  • Single stage or cascade refrigeration
  • Zero ozone depletion refrigerants
  • Multiple compressor options
  • Cryogenic models available
  • Heat only models available
  • Copper tube/aluminum fin cooling coil
  • High efficiency brazed plate cascade heat exchanger
  • Non-bucking automatic heat/cool mode selection with compressor time-out
  • High/low/oil refrigeration pressure limit switches
  • Inherent compressor overload protection
  • Watlow F4T programmer/controller
  • Ethernet Modbus TCP communication
  • Touchscreen control interface
  • Robust graphing and datalogging capability
  • Digital Product Safeguard high/low temperature limit with audible alarm
  • Solid state humidity sensor
  • UL 508A compliant control panel
  • All wiring meets National Electric Code (NEC) standards
  • System branch circuits individually fused
  • 115v control circuitry with integrated isolation transformer
  • Full system function switches and indicator lights
  • System fault status indicators
  • All wiring color coded and labeled
  • High temperature failsafe limit
Thumbnail of environmental test chamber walk in front view
Thumbnail of environmental test chamber walk in with doors closed
Thumbnail of environmental test chamber walk in with double doors open
Thumbnail of environmental test chamber walk in with all doors open
Thumbnail of Solid Construction environmental test chamber walk in
Thumbnail of Solid Construction environmental test chamber russells tech
Thumbnail of Solid Construction environmental chamber double doors open
Thumbnail of Solid Construction environmental chamber door
Thumbnail of Solid Construction environmental chamber door open
Thumbnail of Solid Construction environmental chamber
Thumbnail of Solid Construction 11
Thumbnail of Solid Construction 12
Thumbnail of Solid Construction 13
Thumbnail of environmental test chamber handle

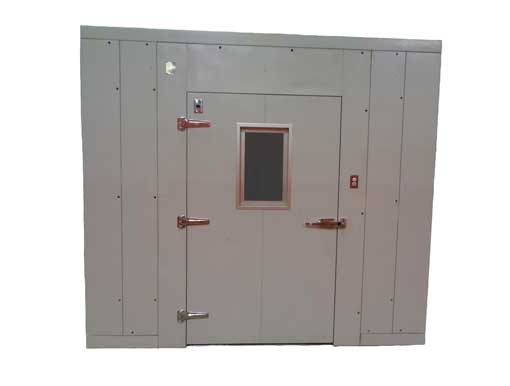

What are Modular Construction Walk-In Temperature & Humidity Chambers?

Russells WM-Series, walk-in environmental test chambers can provide the following combination of controlled testing environments:

  • Steady-state temperature and temperature/ humidity tests
  • Moderate temp./humidity cycling test (< 9°F/5°C/min.)
  • Moderate temperature heat aging (<185°F/85°C)
  • Economical cost
  • Ease of move in and install
  • Wide range of size and performance
  • Engineered cooling modules
  • Temperature range for single stage refrigeration:
    • -13°F/-25°C to 185°F/85°C
  • Temperature range for cascade refrigeration:
    • -100°F/-73°C to 185°F/85°C.
  • Humidity Range: 10% to 95 RH within the bounds of a 158°F/70°C max. dry bulb and a 40°F/4°C min. dewpoint.
  • Through‐wall access ports with foam plugs
  • Viewing windows
  • Refrigeration gauges
  • Refrigeration sound deadening package
  • Remote refrigeration systems
  • LN2 boost cooling
  • Humidity water demineralizer
  • Dry air purge system
  • Desiccant dehumidifier
  • Personnel entrance airlock
  • Entry ramp
  • Running time meter
  • Electrical disconnect switch
  • Product safeguard redundant over/under temperature limit
  • Circular or electronic chart recorders
  • Computer communications, networking, data‐logging software
  • Free standing remote instrument console
  • Additional safeguards for battery testing
  • Low or zero ozone depletion refrigerants
  • Energy-saving refrigeration bypass capacity control
  • Low stage desuperheater
  • Oil pressure switches
  • Compressor suction and discharge pressure switches
  • Air or Water cooled condenser
  • Vapor tank and condenser ASME certified
  • Compressor overload protection
  • High-stage compressor crankcase heater
  • Compressor head fans
  • Low-stage oil separator
  • All piping joints silfos or silver soldered
  • Stainless steel compressor condensate pans
  • All wiring meets NEC/NFPA standards
  • 120v control circuit transformer
  • Fully enclosed electrical panel
  • All circuits fused or circuit breaker protected
  • Full system function switches with system status pilot lights
  • Incandescent interior lighting
  • All wiring numbered or color coded
  • High Temperature limit safety
  • Master heating circuit contactor
  • Air circulator/heater interlock
  • Balanced load on 3 phase power
  • 3rd party NRTL/CSA/CE marking available
Thumbnail of white walk-in chamber
Thumbnail of white walk-in environmental chamber
Thumbnail of white walk-in environmental chamber
Thumbnail of walk-in environmental chamber with door closed

What are Walk-In Environmental Rooms?

Our environmental test rooms are climate-controlled and allow testing for long-term stability, accelerated testing, humidity, and forced long-term stability. We offer the widest range and selection of customizable sizes in environmental rooms used in a variety of industries including pharmaceutical, cold storage, cultivation rooms, incubation, concrete curing, film/photography storage, and more. Our environmental rooms are compliant with NIH, USDA, and other common industry standards.

  • Modular panelized construction with polyurethane foam insulation core (R-value 31+)
  • Wall thickness: 4” (100mm)
  • Available wall panel finishes: galvanized steel, steel with baked enamel, embossed aluminum, stainless steel
  • Floor loading to 600 lbs/ft₂ (2900 kg/m₂) evenly distributed
  • Available door sizes from 34” to 60” in multiple configurations
  • Hardware hinges and latches are heavy duty polished castings
  • Microprocessor temperature/humidity programmer controller mounted in console with acrylic cover
  • Temperature range: -30˚C (-22˚F) to +60˚C (+140˚F)
  • Humidity Range: 5% to 95% RH
  • Through-wall access ports with foam plugs
  • Viewing windows
  • Refrigeration gauges
  • Refrigeration sound deadening package
  • Water cooled condenser
  • Humidity water demineralizer
  • Dry air purge system
  • Desiccant dehumidifier
  • Ante rooms
  • Entry ramp
  • Running time meter
  • Electrical disconnect switch
  • Floor screeds for attachment of floorless chamber to existing building floor
  • Key locked instrumentation console
  • Outdoor refrigeration units
  • Circular or electronic chart recorders
  • Low or zero ozone depletion refrigerants
  • Air cooled condenser
  • Compressor overload protection
  • All piping joints silfos or silver soldered
  • Refrigeration/condenser skid
  • UL 508A compliant control panel
  • All wiring meets National Electric Code (NEC) standards
  • System branch circuits individually fused
  • 120v control circuitry
  • Full system function switches and indicator lights
  • System fault status indicators
  • All wiring color coded and labeled
  • High temperature failsafe limit
